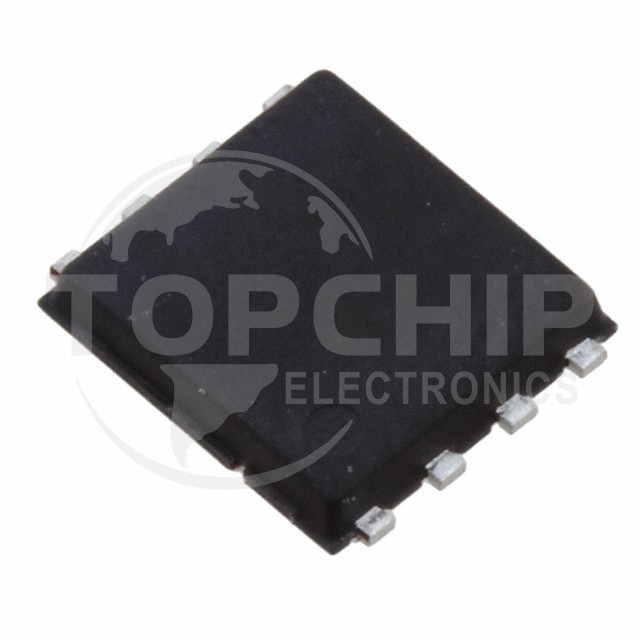

UPA2766T1A-E2-AY Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:130A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:1.82mOhm @ 39A, 4.5V
• Vgs(th) (Max) @ Id:-
• Gate Charge (Qg) (Max) @ Vgs:257 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:10850 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.5W (Ta), 83W (Tc)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-HVSON (5.4x5.15)
• Package / Case:8-PowerVDFN
