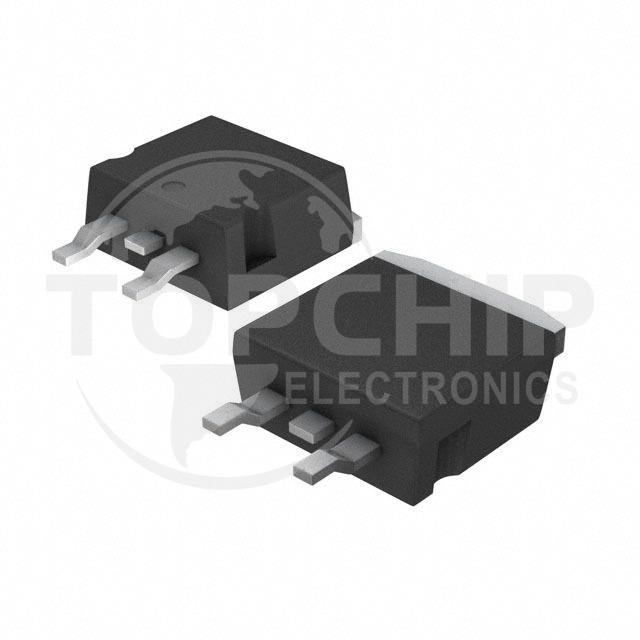

STGB30H60DF Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• IGBT Type:Trench Field Stop
• Voltage - Collector Emitter Breakdown (Max):600 V
• Current - Collector (Ic) (Max):60 A
• Current - Collector Pulsed (Icm):120 A
• Vce(on) (Max) @ Vge, Ic:2.4V @ 15V, 30A
• Power - Max:260 W
• Switching Energy:350µJ (on), 400µJ (off)
• Input Type:Standard
• Gate Charge:105 nC
• Td (on/off) @ 25°C:50ns/160ns
• Test Condition:400V, 30A, 10Ohm, 15V
• Reverse Recovery Time (trr):110 ns
• Operating Temperature:-40°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Supplier Device Package:D2PAK
