RJH60V1BDPE-00#J3

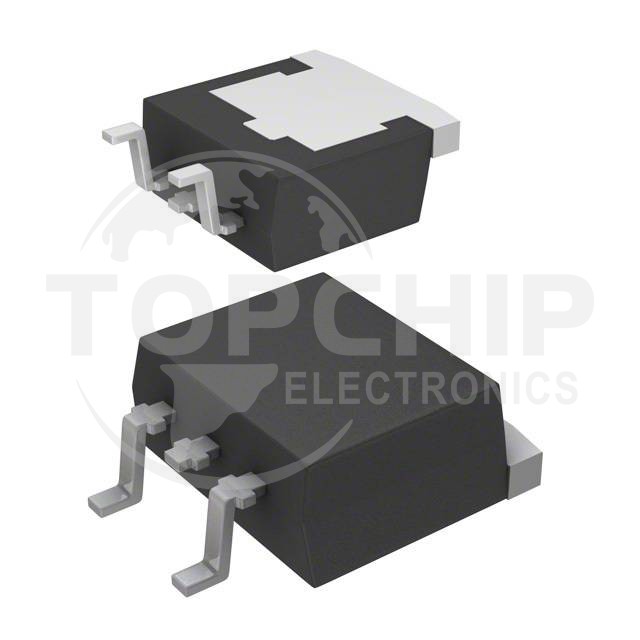

Image is for reference, please contact us to get the real picture

Manufacturer Part
RJH60V1BDPE-00#J3
Manufacturer
Renesas Electronics America
Description
IGBT 600V 16A 52W LDPAK
Category
Discrete Semiconductor Products
Family
Transistors - IGBTs - Single
Series
-
In Stock
0
Datasheets
-

RJH60V1BDPE-00#J3 Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • IGBT Type:Trench
  • Voltage - Collector Emitter Breakdown (Max):600 V
  • Current - Collector (Ic) (Max):16 A
  • Current - Collector Pulsed (Icm):-
  • Vce(on) (Max) @ Vge, Ic:2.2V @ 15V, 8A
  • Power - Max:52 W
  • Switching Energy:17µJ (on), 110µJ (off)
  • Input Type:Standard
  • Gate Charge:19 nC
  • Td (on/off) @ 25°C:30ns/55ns
  • Test Condition:300V, 8A, 5Ohm, 15V
  • Reverse Recovery Time (trr):25 ns
  • Operating Temperature:150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:SC-83
  • Supplier Device Package:4-LDPAK
