DF11-30DS-2V(50)

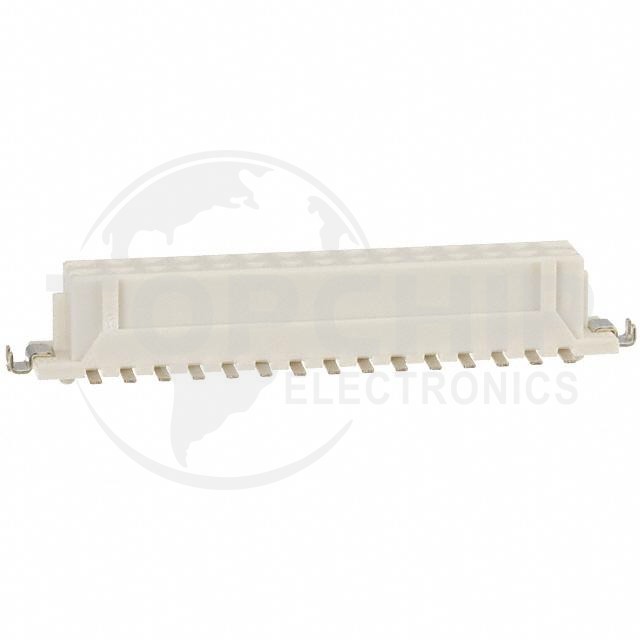

Image is for reference, please contact us to get the real picture

Manufacturer Part
DF11-30DS-2V(50)
Manufacturer
Hirose
Description
CONN RCPT 30POS 0.079 GOLD SMD
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

DF11-30DS-2V(50) Specifications

  • Series:DF11
  • Package:Tube
  • Part Status:Obsolete
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:30
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Insulation Color:Beige
  • Insulation Height:0.234" (5.95mm)
  • Contact Length - Post:-
  • Operating Temperature:-30°C ~ 85°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:7.55mm, 8.2mm
  • Ingress Protection:-
  • Features:Solder Retention
  • Current Rating (Amps):2A
  • Voltage Rating:250V
