XF2R09154A

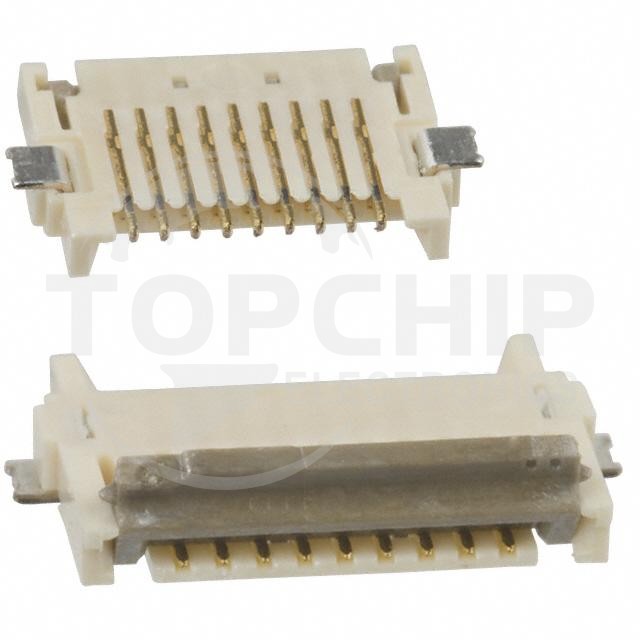

Image is for reference, please contact us to get the real picture

Manufacturer Part
XF2R09154A
Manufacturer
Omron Electronics Components
Description
CONN FPC 9POS 0.50MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
Series
-
In Stock
0
Datasheets
-

XF2R09154A Specifications

  • Series:XF2R
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Flat Flex Type:FPC
  • Mounting Type:Surface Mount, Right Angle
  • Connector/Contact Type:Contacts, Top and Bottom
  • Number of Positions:9
  • Pitch:0.020" (0.50mm)
  • Termination:Solder
  • FFC, FCB Thickness:0.12mm
  • Height Above Board:0.035" (0.88mm)
  • Locking Feature:Rotary Lock, Backlock
  • Cable End Type:Tabbed
  • Contact Material:Copper Alloy
  • Contact Finish:Gold
  • Housing Material:Liquid Crystal Polymer (LCP)
  • Actuator Material:Liquid Crystal Polymer (LCP)
  • Features:Solder Retention
  • Voltage Rating:50V
  • Operating Temperature:-30°C ~ 85°C
  • Material Flammability Rating:UL94 V-0
