IL-FPR-11S-HF-N1

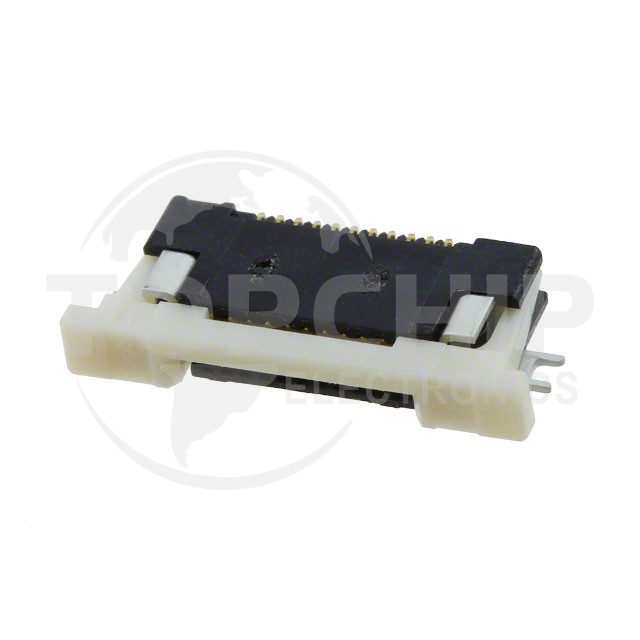

Image is for reference, please contact us to get the real picture

Manufacturer Part
IL-FPR-11S-HF-N1
Manufacturer
JAE Electronics
Description
CONN FPC BOTTOM 11POS 0.50MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
Series
-
In Stock
0
Datasheets
-

IL-FPR-11S-HF-N1 Specifications

  • Series:IL-FPR
  • Package:Tray
  • Part Status:Obsolete
  • Flat Flex Type:FPC
  • Mounting Type:Surface Mount, Right Angle
  • Connector/Contact Type:Contacts, Bottom
  • Number of Positions:11
  • Pitch:0.020" (0.50mm)
  • Termination:Solder
  • FFC, FCB Thickness:0.30mm
  • Height Above Board:0.075" (1.90mm)
  • Locking Feature:Slide Lock
  • Cable End Type:Tapered
  • Contact Material:Copper Alloy
  • Contact Finish:Gold
  • Housing Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Zero Insertion Force (ZIF)
  • Voltage Rating:50V
  • Operating Temperature:-40°C ~ 85°C
  • Material Flammability Rating:UL94 V-0
