1825093-5

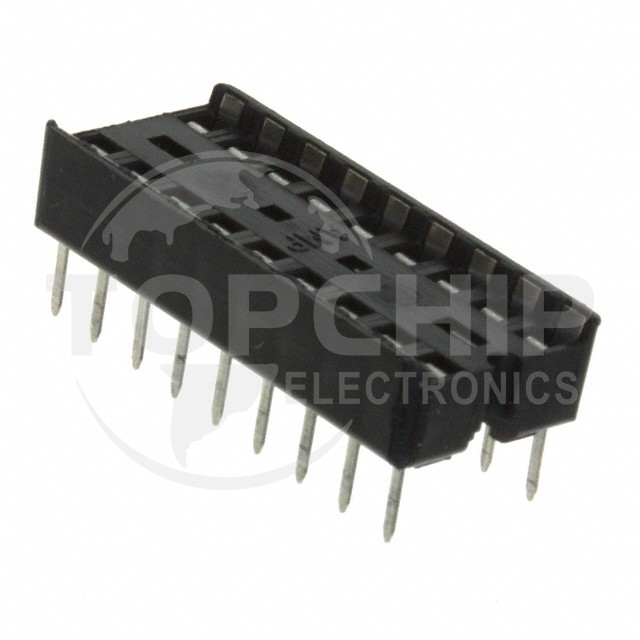

Image is for reference, please contact us to get the real picture

Manufacturer Part
1825093-5
Manufacturer
TE Connectivity AMP Connectors
Description
CONN IC DIP SOCKET 18POS GOLD
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors
Series
-
In Stock
0
Datasheets
-

1825093-5 Specifications

  • Series:Diplomate DL
  • Package:Tube
  • Part Status:Obsolete
  • Type:DIP, 0.3" (7.62mm) Row Spacing
  • Number of Positions or Pins (Grid):18 (2 x 9)
  • Pitch - Mating:0.100" (2.54mm)
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Material - Mating:Phosphor Bronze
  • Mounting Type:Through Hole
  • Features:Closed Frame
  • Termination:Solder
  • Pitch - Post:0.100" (2.54mm)
  • Contact Finish - Post:Gold
  • Contact Finish Thickness - Post:15.0µin (0.38µm)
  • Contact Material - Post:Phosphor Bronze
  • Housing Material:Thermoplastic, Glass Filled
  • Operating Temperature:-55°C ~ 125°C
