1-390261-9

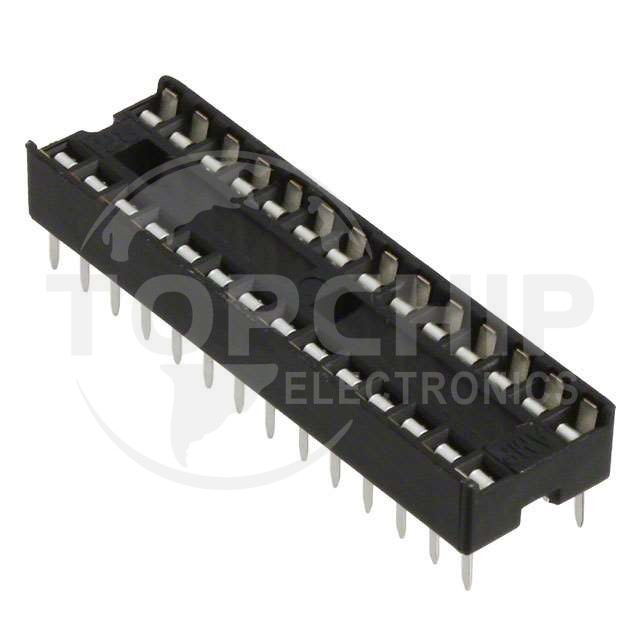

Image is for reference, please contact us to get the real picture

Manufacturer Part
1-390261-9
Manufacturer
TE Connectivity AMP Connectors
Description
CONN IC DIP SOCKET 28POS TIN
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors
Series
-
In Stock
0
Datasheets
-

1-390261-9 Specifications

  • Series:-
  • Package:Tube
  • Part Status:Obsolete
  • Type:DIP, 0.3" (7.62mm) Row Spacing
  • Number of Positions or Pins (Grid):28 (2 x 14)
  • Pitch - Mating:0.100" (2.54mm)
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Material - Mating:Phosphor Bronze
  • Mounting Type:Through Hole
  • Features:Open Frame
  • Termination:Solder
  • Pitch - Post:0.100" (2.54mm)
  • Contact Finish - Post:Tin
  • Contact Finish Thickness - Post:60.0µin (1.52µm)
  • Contact Material - Post:Phosphor Bronze
  • Housing Material:-
  • Operating Temperature:-40°C ~ 105°C
