PJ-015B-SMT-TR

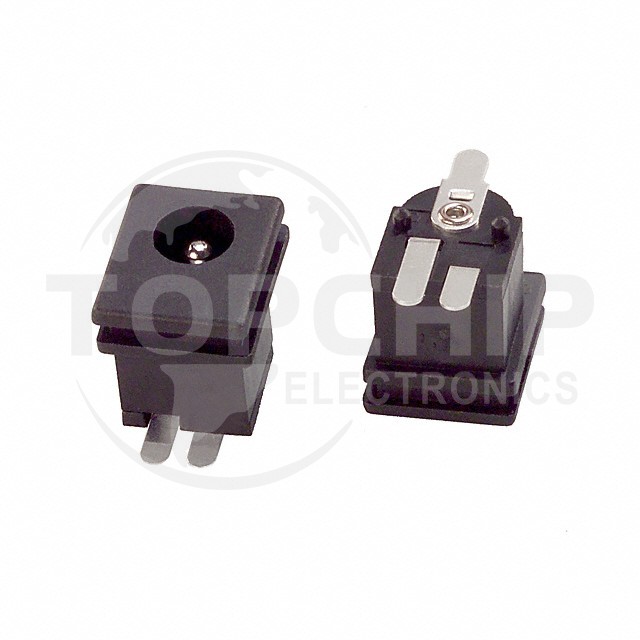

Image is for reference, please contact us to get the real picture

Manufacturer Part
PJ-015B-SMT-TR
Manufacturer
CUI Devices
Description
CONN PWR JACK 2.5X5.5MM SOLDER
Category
Connectors, Interconnects
Family
Barrel - Power Connectors
Series
-
In Stock
0
Datasheets
-

PJ-015B-SMT-TR Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Connector Type:Jack
  • Gender:Male
  • Industry Recognized Mating Diameter:2.50mm ID (0.098"), 5.50mm OD (0.217")
  • Actual Diameter:0.098" (2.50mm ID), 0.256" (6.50mm OD)
  • Number of Positions/Contacts:2 Conductors, 3 Contacts
  • Internal Switch(s):Single Switch, Normally Closed
  • Mounting Type:Surface Mount
  • Mounting Feature:-
  • Termination:Solder
  • Shielding:Unshielded
  • Features:Board Guide
  • Insulation Color:-
  • Voltage - Rated:16VDC
  • Current Rating (Amps):2.5 A
  • Mating Length/Depth:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
