JL04V-6A20-15SE-EB-R

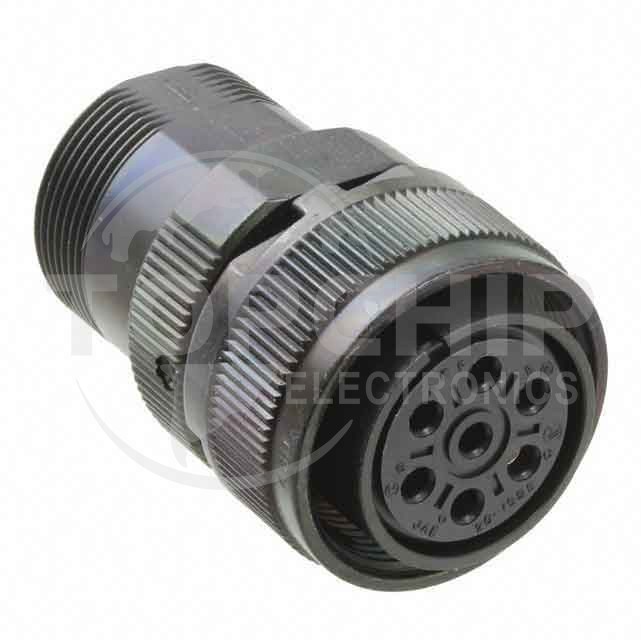

Image is for reference, please contact us to get the real picture

Manufacturer Part
JL04V-6A20-15SE-EB-R
Manufacturer
JAE Electronics
Description
CONN PLUG FMALE 7P SOLDER CUP
Category
Connectors, Interconnects
Family
Circular Connectors
Series
-
In Stock
0
Datasheets
-

JL04V-6A20-15SE-EB-R Specifications

  • Series:JL04V
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Plug, Female Sockets
  • Number of Positions:7 (6 + PE)
  • Shell Size - Insert:20-15
  • Shell Size, MIL:-
  • Mounting Type:Free Hanging (In-Line)
  • Mounting Feature:-
  • Termination:Solder Cup
  • Fastening Type:Threaded
  • Orientation:N (Normal)
  • Shell Material:Aluminum Alloy
  • Shell Finish:Zinc
  • Contact Finish - Mating:Silver
  • Color:Black
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:-
  • Features:Backshell, Coupling Nut, Ground Lug
  • Shielding:-
  • Current Rating (Amps):23A
  • Voltage Rating:-
  • Cable Opening:-
  • Operating Temperature:-55°C ~ 125°C
