RT9032DGQW Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Programmable
• Number of Regulators:2
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):1.5V, 2.6V
• Voltage - Output (Max):2.9V, 3.3V
• Voltage Dropout (Max):0.5V @ 300mA, 0.5V @ 300mA
• Current - Output:300mA, 300mA
• Current - Quiescent (Iq):80 µA
• Current - Supply (Max):-
• PSRR:65dB ~ 50dB (100Hz ~ 10kHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Short Circuit
• Operating Temperature:-40°C ~ 85°C
• Mounting Type:Surface Mount

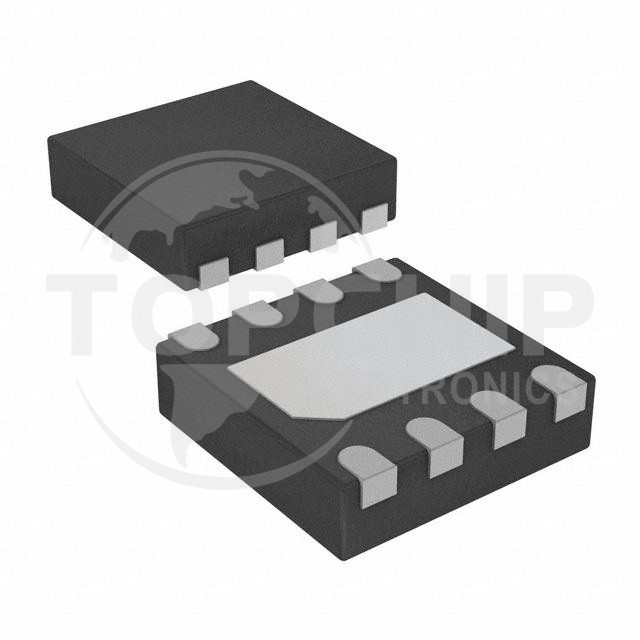

• Package / Case:8-WFDFN Exposed Pad
• Supplier Device Package:8-WDFN (2x2)
