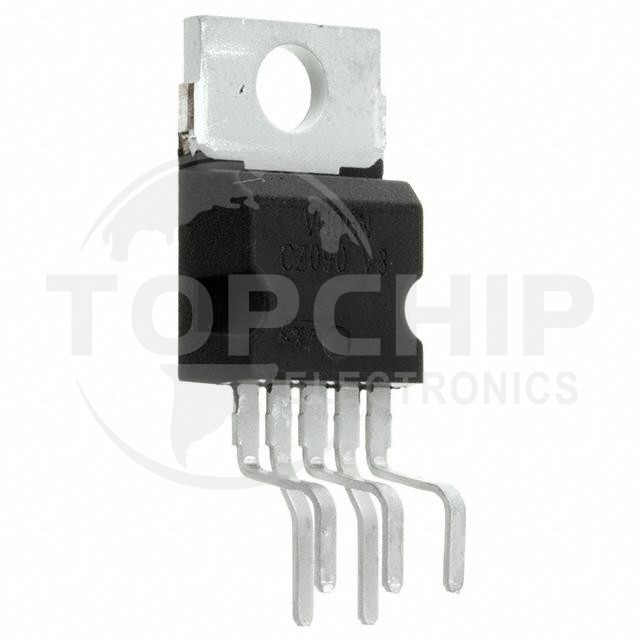

VN820 Specifications

• Series:-
• Package:Tube
• Part Status:Obsolete
• Switch Type:General Purpose
• Number of Outputs:1
• Ratio - Input:Output:1:1
• Output Configuration:High Side
• Output Type:N-Channel
• Interface:On/Off
• Voltage - Load:5.5V ~ 36V
• Voltage - Supply (Vcc/Vdd):Not Required
• Current - Output (Max):9A
• Rds On (Typ):40mOhm (Max)
• Input Type:Non-Inverting
• Features:Auto Restart, Status Flag
• Fault Protection:Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:5-PENTAWATT
• Package / Case:Pentawatt-5 (Vertical, Bent and Staggered Leads)
