ISL43140IR-T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Switch Circuit:SPST - NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):65Ohm
• Channel-to-Channel Matching (ΔRon):2Ohm
• Voltage - Supply, Single (V+):2.7V ~ 12V
• Voltage - Supply, Dual (V±):±2.6V ~ 6V
• Switch Time (Ton, Toff) (Max):80ns, 30ns
• -3db Bandwidth:-
• Charge Injection:1pC
• Channel Capacitance (CS(off), CD(off)):7pF, 7pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-90dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

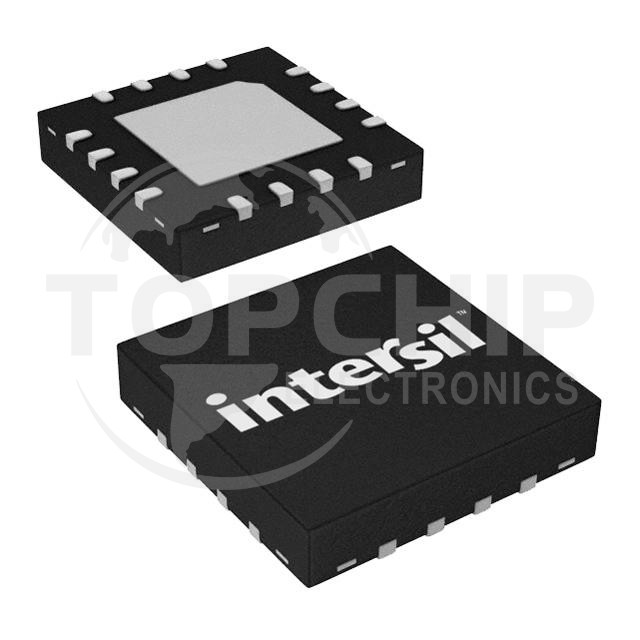

• Package / Case:16-VFQFN Exposed Pad
• Supplier Device Package:16-QFN (3x3)
