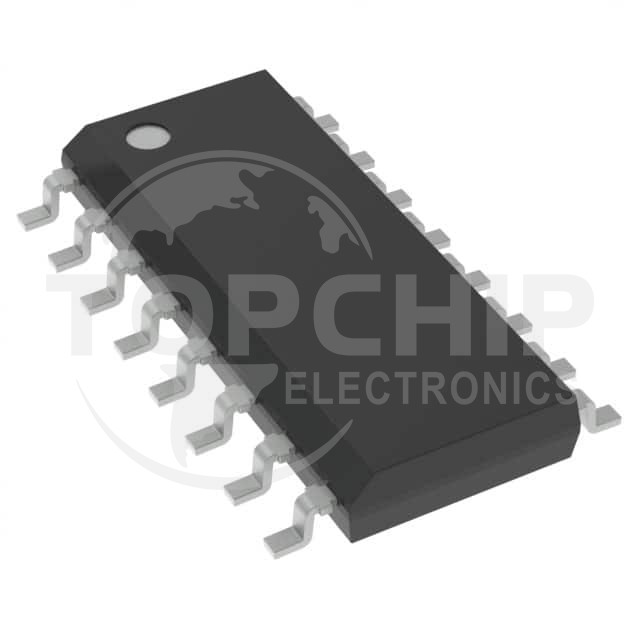

HCF4051M013TR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):280Ohm
• Channel-to-Channel Matching (ΔRon):5Ohm
• Voltage - Supply, Single (V+):3V ~ 20V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:60MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):0.2pF, 5pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-40dB @ 3MHz
• Operating Temperature:-55°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:16-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:16-SO
