ADG772BCPZ-REEL Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):6.7Ohm (Typ)
• Channel-to-Channel Matching (ΔRon):40mOhm
• Voltage - Supply, Single (V+):2.7V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):12.5ns, 9.5ns
• -3db Bandwidth:630MHz
• Charge Injection:0.5pC
• Channel Capacitance (CS(off), CD(off)):2.4pF, 6.9pF
• Current - Leakage (IS(off)) (Max):200pA
• Crosstalk:-90dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

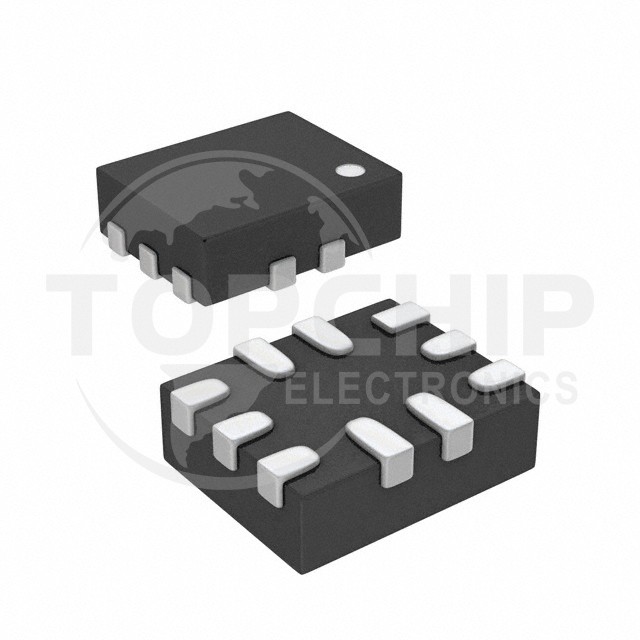

• Package / Case:10-UFQFN, CSP
• Supplier Device Package:10-LFCSP-UQ (1.6x1.3)
