SLAS5223MNR2G Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):300mOhm
• Channel-to-Channel Matching (ΔRon):50mOhm
• Voltage - Supply, Single (V+):1.65V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):50ns, 30ns
• -3db Bandwidth:17MHz
• Charge Injection:38pC
• Channel Capacitance (CS(off), CD(off)):3.5pF
• Current - Leakage (IS(off)) (Max):10nA
• Crosstalk:-70dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

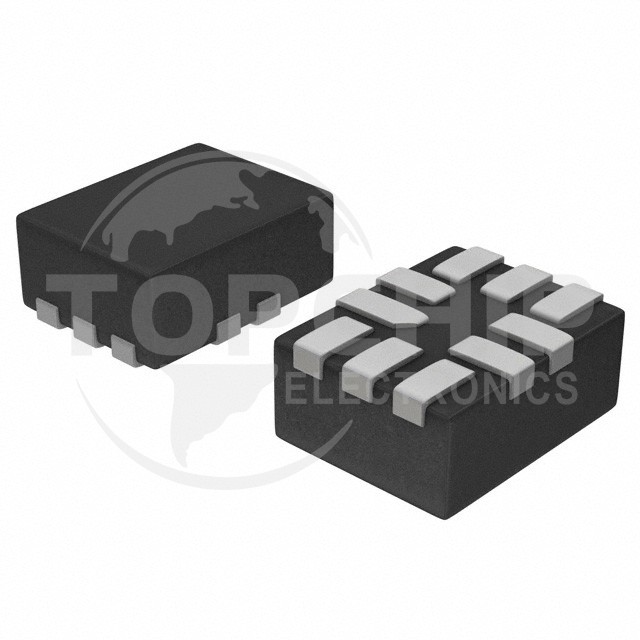

• Package / Case:10-WFQFN
• Supplier Device Package:10-WQFN (1.4x1.8)
