PI3A3160ZGEX Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):450mOhm
• Channel-to-Channel Matching (ΔRon):80mOhm (Max)
• Voltage - Supply, Single (V+):1.5V ~ 4.2V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):20ns, 12ns
• -3db Bandwidth:-
• Charge Injection:100pC
• Channel Capacitance (CS(off), CD(off)):56pF, 56pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-41dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

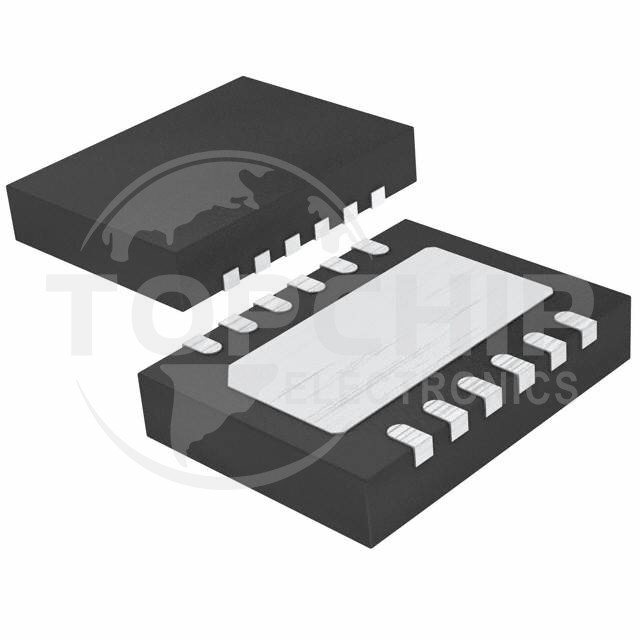

• Package / Case:12-WFDFN Exposed Pad
• Supplier Device Package:12-TDFN (3.5x3)
