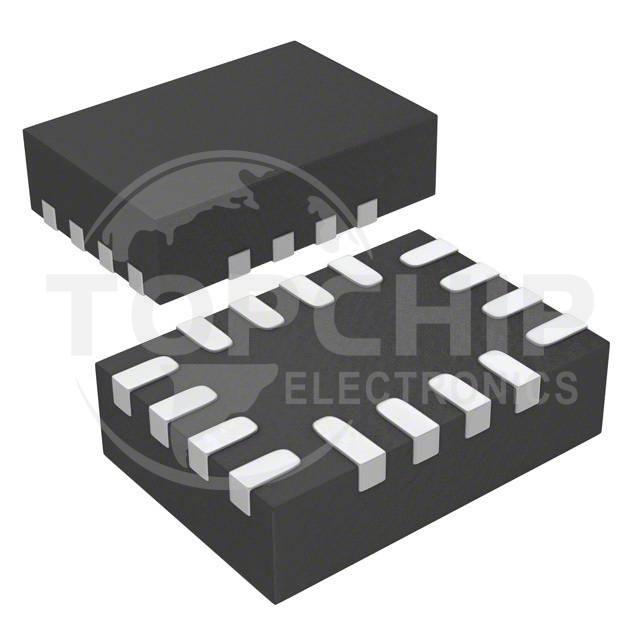

DG4053AEN-T1-E4 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:3
• On-State Resistance (Max):100Ohm
• Channel-to-Channel Matching (ΔRon):3Ohm
• Voltage - Supply, Single (V+):2.7V ~ 12V
• Voltage - Supply, Dual (V±):±2.5V ~ 5V
• Switch Time (Ton, Toff) (Max):108ns, 92ns
• -3db Bandwidth:730MHz
• Charge Injection:0.25pC
• Channel Capacitance (CS(off), CD(off)):3pF, 4pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-67dB @ 10MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:16-WFQFN
• Supplier Device Package:16-miniQFN (1.8x2.6)
