PC24.09.0100A

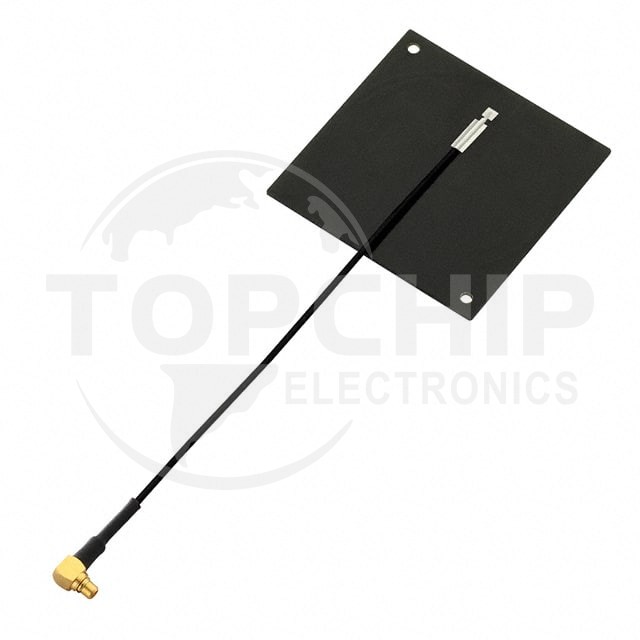

Image is for reference, please contact us to get the real picture

Manufacturer Part
PC24.09.0100A
Manufacturer
Taoglas
Description
RF ANT 892MHZ/1.9GHZ FLAT PATCH
Category
RF/IF and RFID
Family
RF Antennas
Series
-
In Stock
0
Datasheets
-

PC24.09.0100A Specifications

  • Series:TheStripe™
  • Package:Bulk
  • Part Status:Obsolete
  • RF Family/Standard:Cellular
  • Frequency Group:UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
  • Frequency (Center/Band):892MHz, 1.9GHz
  • Frequency Range:824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
  • Antenna Type:Flat Patch
  • Number of Bands:2
  • VSWR:2
  • Return Loss:-25dB, -12dB
  • Gain:0dBi
  • Power - Max:10 W
  • Features:-
  • Termination:MMCX Male
  • Ingress Protection:-
  • Mounting Type:Adhesive
  • Height (Max):0.031" (0.80mm)
  • Applications:GSM
