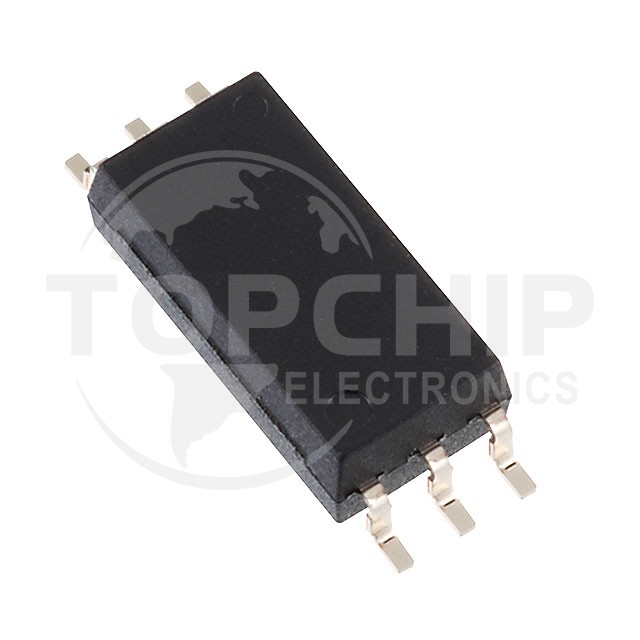

TLP2761F(D4,F) Specifications

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Number of Channels:1
• Inputs - Side 1/Side 2:1/0
• Voltage - Isolation:5000Vrms
• Common Mode Transient Immunity (Min):20kV/µs
• Input Type:AC, DC
• Output Type:Push-Pull, Totem Pole
• Current - Output / Channel:10 mA
• Data Rate:15MBd
• Propagation Delay tpLH / tpHL (Max):80ns, 80ns
• Rise / Fall Time (Typ):3ns, 3ns
• Voltage - Forward (Vf) (Typ):1.5V
• Current - DC Forward (If) (Max):10mA
• Voltage - Supply:2.7V ~ 5.5V
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:6-SOIC (0.295", 7.50mm Width)
• Supplier Device Package:6-SO
