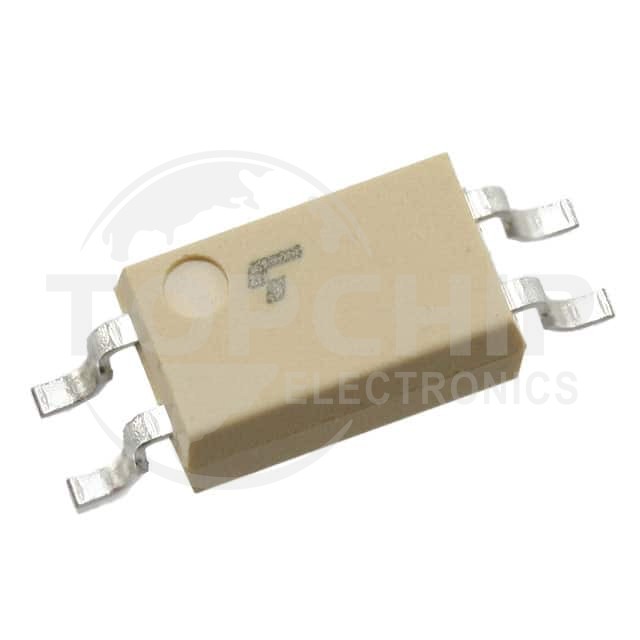

TLP291(GR,E) Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Number of Channels:1
• Voltage - Isolation:3750Vrms
• Current Transfer Ratio (Min):100% @ 5mA
• Current Transfer Ratio (Max):300% @ 5mA
• Turn On / Turn Off Time (Typ):7µs, 7µs
• Rise / Fall Time (Typ):4µs, 7µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.25V
• Current - DC Forward (If) (Max):50 mA
• Vce Saturation (Max):300mV
• Operating Temperature:-55°C ~ 110°C
• Mounting Type:Surface Mount
• Package / Case:4-SOIC (0.179", 4.55mm Width)
• Supplier Device Package:4-SO
