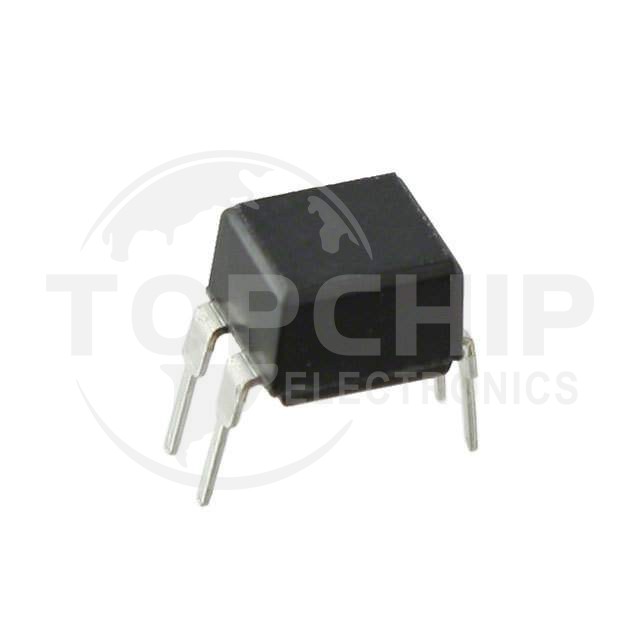

TLP781(GB,F) Specifications

• Series:-
• Package:Tube
• Part Status:Obsolete
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Current Transfer Ratio (Min):100% @ 5mA
• Current Transfer Ratio (Max):600% @ 5mA
• Turn On / Turn Off Time (Typ):3µs, 3µs
• Rise / Fall Time (Typ):2µs, 3µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.15V
• Current - DC Forward (If) (Max):60 mA
• Vce Saturation (Max):400mV
• Operating Temperature:-55°C ~ 110°C
• Mounting Type:Through Hole
• Package / Case:4-DIP (0.300", 7.62mm)
• Supplier Device Package:4-DIP
