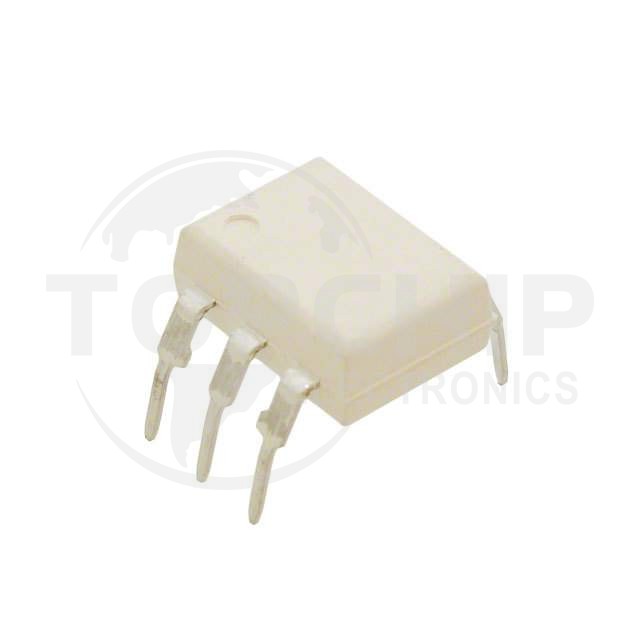

MOC8101W Specifications

• Series:-
• Package:Tube
• Part Status:Obsolete
• Number of Channels:1
• Voltage - Isolation:5300Vrms
• Current Transfer Ratio (Min):50% @ 10mA
• Current Transfer Ratio (Max):80% @ 10mA
• Turn On / Turn Off Time (Typ):2µs, 3µs
• Rise / Fall Time (Typ):1µs, 2µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):30V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.15V
• Current - DC Forward (If) (Max):100 mA
• Vce Saturation (Max):400mV
• Operating Temperature:-55°C ~ 100°C
• Mounting Type:Through Hole
• Package / Case:6-DIP (0.400", 10.16mm)
• Supplier Device Package:6-DIP
