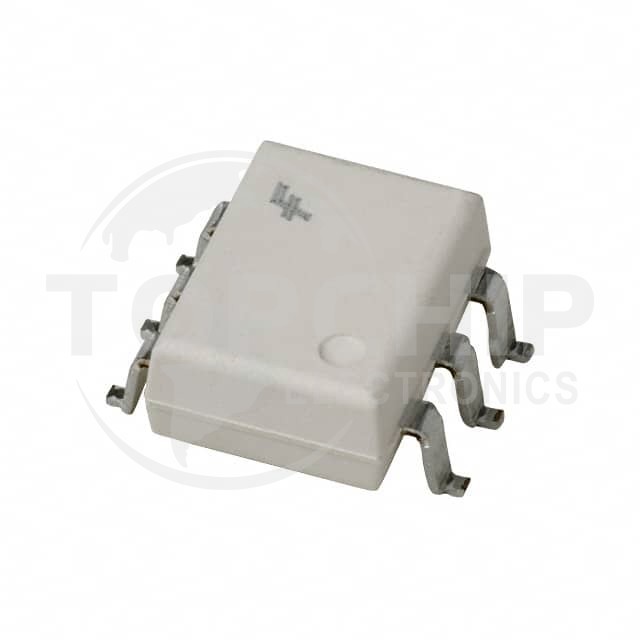

4N39S Specifications

• Series:-
• Package:Tube
• Part Status:Obsolete
• Output Type:SCR
• Zero Crossing Circuit:No
• Number of Channels:1
• Voltage - Isolation:5300Vrms
• Voltage - Off State:200 V
• Static dV/dt (Min):500V/µs
• Current - LED Trigger (Ift) (Max):30mA
• Current - On State (It (RMS)) (Max):300 mA
• Current - Hold (Ih):1mA
• Turn On Time:50µs (Max)
• Voltage - Forward (Vf) (Typ):1.1V
• Current - DC Forward (If) (Max):60 mA
• Operating Temperature:-55°C ~ 100°C
• Mounting Type:Surface Mount
• Package / Case:6-SMD, Gull Wing
• Supplier Device Package:6-SMD
• Approval Agency:UR
