The ADS1110A0IDBVR is a high-precision, continuously self-calibrating analog-to-digital (A/D) converter from TI (Texas Instruments) with differential inputs and up to 16-bit resolution in a small SOT23-6 package. The automotive 2.048V differential reference voltage provides an input range of ±2.048V. The ADS1110A0IDBVR uses an I2C-compatible serial interface and operates from a single 2.7V to 5.5V supply.
Functional features of ADS1110A0IDBVR
1. High precision: ADS1110A0IDBVR can provide 16-bit precision analog-to-digital conversion, which can realize high-precision signal collection and processing, and is suitable for applications requiring high precision.
2. Low power consumption: ADS1110A0IDBVR adopts Σ-Δ architecture and internal reference voltage source, which can complete the analog-to-digital conversion process with extremely low power consumption. It is suitable for use in applications that require energy saving and long-term operation.
3. Small size: ADS1110A0IDBVR adopts a micro package and is compact in size, making it easy to integrate into various compact space circuit board designs and is suitable for applications with high size requirements.
4. Built-in temperature compensation: ADS1110A0IDBVR has a built-in temperature sensor and temperature compensation circuit, which can realize automatic calibration of ambient temperature changes and ensure the accuracy and stability of analog-to-digital conversion.
5. Flexible input configuration: ADS1110A0IDBVR provides single-ended and differential input modes and supports programmable gain. Users can choose the most suitable input configuration according to actual application needs.
Application fields of ADS1110A0IDBVR
ADS1110A0IDBVR is an ultra-low-power, high-resolution 16-bit analog-to-digital converter (ADC). Its main application areas are as follows:
1. Portable and battery-powered equipment: ADS1110A0IDBVR has extremely low operating current and automatic power management functions. It is very suitable for use in portable equipment and battery-powered equipment, which can extend battery life and improve the battery life of the device.
2. Industrial automation: In the field of industrial automation, ADS1110A0IDBVR can be used to measure and monitor analog signals output by various sensors, such as pressure sensors, temperature sensors, flow sensors, etc., to achieve accurate data collection and control.
3. Medical equipment: The high resolution and low power consumption of ADS1110A0IDBVR make it a commonly used analog-to-digital converter in medical equipment for measuring biological signals and sensor signals, such as electrocardiogram, blood pressure, body temperature, etc.
4. Instruments: ADS1110A0IDBVR can be used in various instruments, such as multi-function meters, thermometers, pressure gauges, etc., to achieve accurate signal collection and precise measurement.
5. Consumer electronics: Since ADS1110A0IDBVR has the characteristics of small package, low power consumption and high resolution, it is also commonly used in consumer electronics, such as smart home devices, smart wearable devices, etc., for signal collection and data processing. .
ADS1110A0IDBVR parameters
Brand: TI (Texas Instruments)
Product Category: Analog-to-Digital Conversion Chip ADC
Package: SOT-23-6
Packaging: whole package
Number of digits: 16
Sample rate (per second): 240
Number of inputs: 1
Input type: differential, single-ended
Data interface: I2C
Configuration: PGA-ADC
Ratio-S/H:ADC
Number of A/D converters: 1
Architecture: Trigonometric Calculus
Reference type: Internal
Voltage - power supply, analog: 2.7V~5.5V
Voltage - power supply, digital: 2.7V~5.5V
Features: PGA, optional address
Working temperature: -40℃~125℃
Installation type: surface mount type
Basic product number: ADS1110
HTSUS: 8542.39.0001
Product application: automotive grade

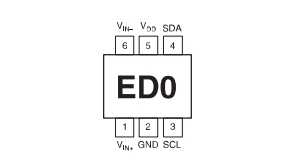

Pin diagram of ADS1110A0IDBVR
