BD90620EFJ-CE2 is a switching regulator from ROHM Semiconductor with an external resistor, freely setable operating frequency, and built-in high-voltage POWER MOSFET. It has the characteristics of a wide input voltage range (3.5V~36V) and a wide operating temperature range (-40℃~+125℃), and can operate synchronously with an external clock input through the external synchronization input pin.
BD90620EFJ-CE2 parameters
Manufacturer product model: BD90620EFJ-CE2
Manufacturer: Rohm Semiconductor
Description: IC REG BUCK ADJ 2.5A 8HTSOP-J
Product Series: Power Management IC - Voltage Regulator - DC DC Switching Regulator
Packaging: Tape and Reel (TR), Cut Tape (CT)
Series: Automotive, AEC-Q100
Part status: active
Function: step down
Output configuration: positive
Topology: Buck
Output type: adjustable
Number of outputs: 1
Voltage - Input (minimum): 5V
Voltage - Input (max): 36V
Voltage - Output (min/fixed): 0.8V
Voltage - Output (max): 36V
Current - Output: 2.5A
Frequency-switch: 50kHz ~ 500kHz
Synchronous rectifier: none
Working temperature: -40°C ~ 125°C (TA)
Installation type: surface mount type
Part package: 8-SOIC (0.154, 3.90mm wide)
BD90620EFJ-CE2 features:
AEC-Q100 Qualified (Level 1)
Integrated Pch power MOSFET
Low dropout: 100% duty cycle
External synchronization function
Soft start function: 1.38ms (fsw = 500kHz)
Current mode control
Overcurrent protection
Low supply voltage error prevention
Thermal shutdown protection
Short circuit protection
High power HRP7 package mounting
Compact high power HTSOP-J8 package mounting
Load dump up to 42V.

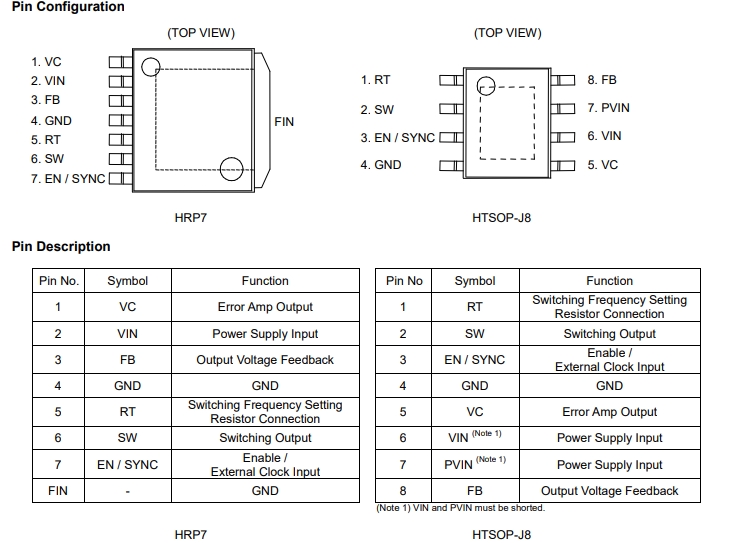

BD90620EFJ-CE2 pin diagram
