dsPIC30F2010-30I/SP is a digital signal controller (DSP) chip produced by Microchip Technology. Agent for sales of MICROCHIP's full range of IC electronic components - TOPCHIP ELECTRONICS provides you with DSPIC30F2010-30I/SP product introduction, pin diagrams and schematics.
DSPIC30F2010-30I/SP product introduction
1. DSPIC30F2010-30I/SP parameters:
Series:dsPIC™ 30F
Package:Tube
Part Status:Active
Core Processor:dsPIC
Core Size:16-Bit
Speed:30 MIPs
Connectivity:I²C, SPI, UART/USART
Peripherals:Brown-out Detect/Reset, Motor Control PWM, QEI, POR, PWM, WDT
Number of I/O:20
Program Memory Size:12KB (4K x 24)
Program Memory Type:FLASH
EEPROM Size:1K x 8
RAM Size:512 x 8
Voltage - Supply (Vcc/Vdd):2.5V ~ 5.5V
Data Converters:A/D 6x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Through Hole
Package / Case:28-DIP (0.300", 7.62mm)
Supplier Device Package:28-SPDIP
2. Functional features:
Digital signal controller (DSP) function: dsPIC30F2010-30I/SP integrates digital signal processing functions, which can be used to process digital signals in real time, such as filtering, transformation, modulation, etc.
High-performance processor core: Equipped with a high-performance 16-bit dsPIC core, which has high-speed computing and data processing capabilities.
Rich peripheral interfaces: including universal serial bus (SPI), asynchronous serial communication port (USART), I²C bus, analog comparator, etc., to facilitate communication and control with external devices.
Analog-to-digital-to-analog converter (ADC): Integrated analog-to-digital-to-analog converter, which can convert analog signals into digital signals to facilitate digital signal processing.
PWM module: Built-in PWM module can be used to control motor drive, lighting control and other applications.
Low power consumption features: Supports multiple low power consumption modes to help save energy and extend battery life.
Rich memory: including flash program memory and RAM data memory, suitable for storing program code and temporary data.
Built-in protection functions: Including power monitoring, overheating protection and other functions, which improves the stability and reliability of the system.
3. Application fields:
Motor control: dsPIC30F2010-30I/SP can be used to control various types of motors, such as DC motors, stepper motors, AC motors, etc., and is widely used in industrial automation, robotics and other fields.
Embedded systems: Suitable for the design and development of embedded systems, such as smart homes, smart IoT devices, etc.
Power management: Can be used to design and control various types of power systems, including switching power supplies, charging management, etc.
Signal processing applications: Used in audio processing, image processing, communication systems and other application fields that require digital signal processing.
Medical equipment: Control and data processing of medical equipment such as heart rate monitors and blood pressure monitors.
Automotive electronics: used in controllers, sensor interfaces, body electronic systems, etc. in automotive electronic systems.
Industrial control: Control systems used in factory automation, machinery control, PLC and other fields.
Aerospace: In the aerospace field, it can be used for flight control, navigation systems, inertial navigation, etc.

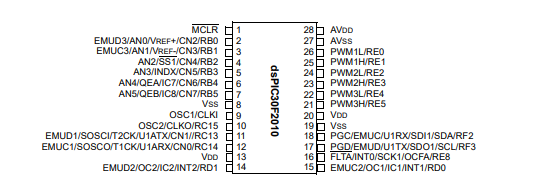

DSPIC30F2010-30I/SP pin diagram

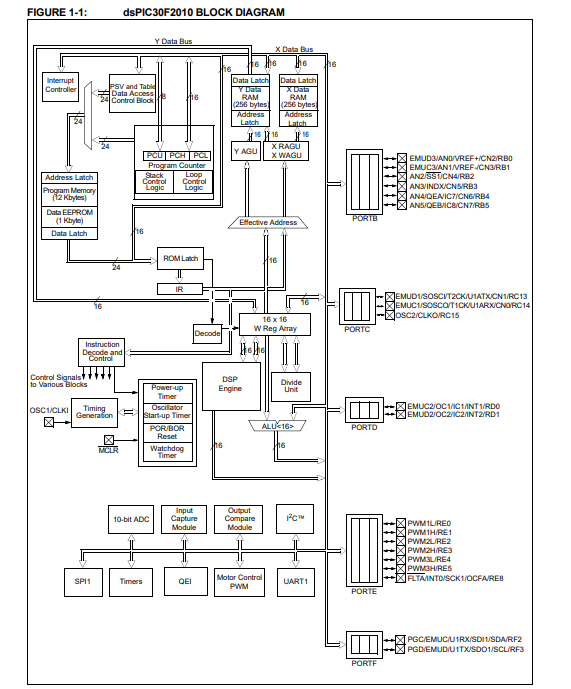

DSPIC30F2010-30I/SP schematic diagram
