FAN6204AMX is a power controller launched by Fairchild Semiconductor (now ON Semiconductor). It sells ON Semiconductor's full range of IC electronic components - SMIC can provide you with detailed technical parameters, application fields and pin diagrams.
Detailed explanation of technical parameters of FAN6204AMX
Manufacturer product model: FAN6204AMX
Manufacturer: ON Semiconductor
Description: SR CONTROLLER IC
Product Family: Power Management ICs - Power Controllers, Monitors
Packaging: Tape and Reel (TR), Cut Tape (CT)
Series:mWSaver?
Part status: active
Applications: Secondary side controllers, synchronous rectifiers
Voltage-Input:-
Voltage-power supply: 4.5V ~ 28.5V
Current - Power supply: 7mA
Working temperature: -40°C ~ 105°C
Installation type: surface mount type
Product package: 8-SOIC (0.154, 3.90mm wide)
FAN6204AMX application fields
FAN6204AMX can be applied to various DC-DC converter designs. Common application areas include but are not limited to:
1. Power management system: used in power management systems of computers, servers, communication equipment, etc. to provide stable voltage output and efficient power conversion.
2. Industrial control: used in industrial control equipment, industrial automation systems, etc. to provide stable power output.
3. Automotive electronics: used in DC-DC converter design in automotive electronic systems, such as automotive entertainment systems, vehicle chargers, etc.
4. Consumer electronic products: In the power management system of consumer electronic products such as laptops, tablets, and televisions.

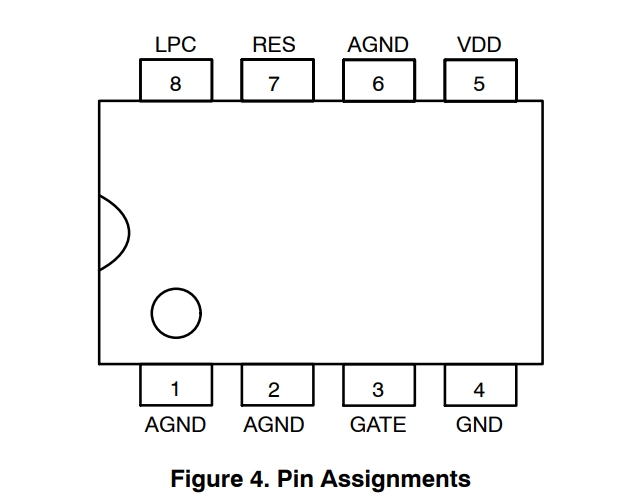

FAN6204AMX pin diagram

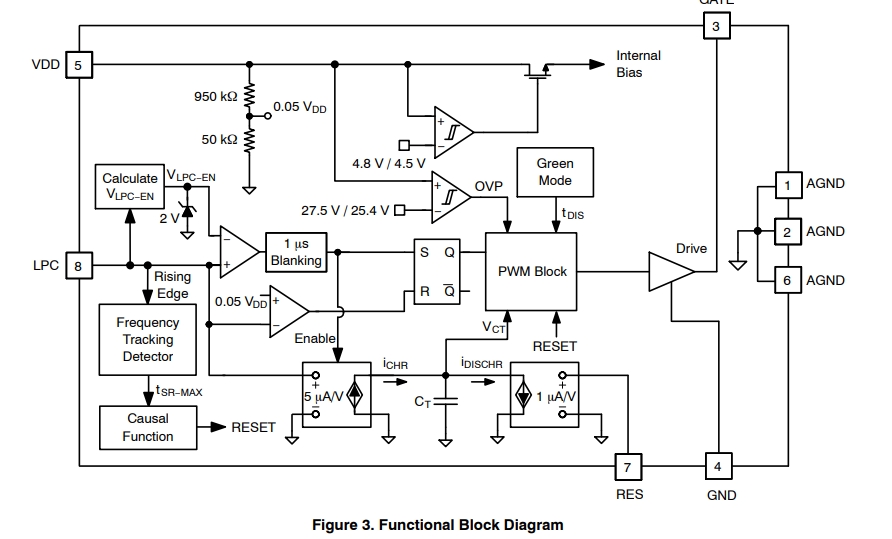

FAN6204AMX functional block diagram
