STMicroelectronics' model L7815CV (click to buy now) is a voltage regulator chip that comes in a TO-220 package and several fixed output voltages, and can be used in a wide range of applications. These regulators can provide local on-card supervision, eliminating the distribution issues associated with single-point supervision. Each type has internal current limiting, thermal shutdown, and safe area protection embedded in it, making it essentially indestructible. If sufficient heat dissipation is provided, they can provide output current in excess of 1A. Although these devices are primarily designed as fixed voltage regulators, they can be used with external components to obtain adjustable voltage and current.
Functional features of L7815CV
1. Voltage stability: L7815CV can stabilize the input voltage to an output voltage of +15V. This kind of voltage regulator can effectively reduce the fluctuation of the output voltage and ensure the stability of the output voltage, and is suitable for application scenarios with strict voltage requirements.
2. Low power consumption: L7815CV has the characteristics of low static power consumption and high efficiency, which can reduce power consumption while providing stable voltage, thereby reducing energy consumption and heat generation.
3. Overload protection: L7815CV has overheating protection and short-circuit protection functions, which can automatically cut off the output when the current is overloaded or short-circuited to protect the components in the circuit from damage.
4. Simple peripheral components: L7815CV has built-in overvoltage protection function, which can reduce the need for external components and simplify the overall circuit design and installation process.
5. Wide application: Due to its high stability, safety, reliability, and stable performance, L7815CV is widely used in various electronic equipment, such as power supplies, regulators, analog electronic equipment, etc.
Application fields of L7815CV
L7815CV is a linear voltage regulator with a fixed output voltage of +15V. Its main application areas are as follows:
1. Power supply system: L7815CV can be used to stabilize the power supply in automotive electronic equipment, computer motherboards, communication equipment and other systems to ensure that the system works stably and reliably.
2. Industrial control field: In industrial control systems, L7815CV can be used to supply various control circuits, such as sensors, actuators, etc., to maintain the operational stability of the system.
3. Instruments: Among various instruments and meters, L7815CV can be used as a power management chip to provide stable power supply for the instruments.
4. Communication equipment: L7815CV can be used in various communication equipment, such as routers, switches, etc., to ensure the stability of the power supply of communication equipment and improve the reliability of the equipment.
L7815CV parameters
Brand: STMicroelectronics
Product Category: Voltage Stabilizer Chip
Package: TO-220 (TO-220-3)
Packaging: tube
Working temperature: 0℃~125℃
Mounting type: Through hole
Basic product number: L7815
HTSUS: 8542.39.0001
Output configuration: positive
Output type: fixed
Number of voltage regulators: 1
Voltage-input (maximum): 35V
Voltage - Output (min/fixed): 15V
Voltage-output (maximum):-
Voltage drop (maximum value): 2V@1A (standard)
Current - Output: 1.5A
Current - Quiescent (Iq): 8mA
PSRR: 54dB(120Hz)
Control Characteristics:-
Protection function: over temperature, short circuit
Product application: industrial grade

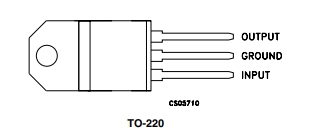

Pin diagram of L7815CV

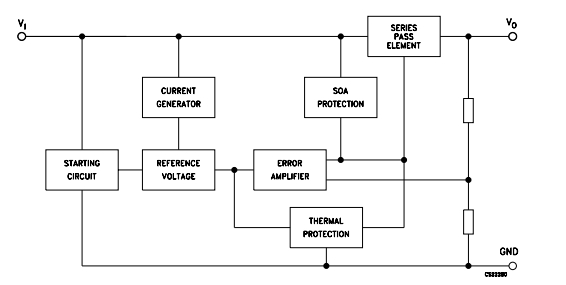

Schematic diagram of L7815CV
