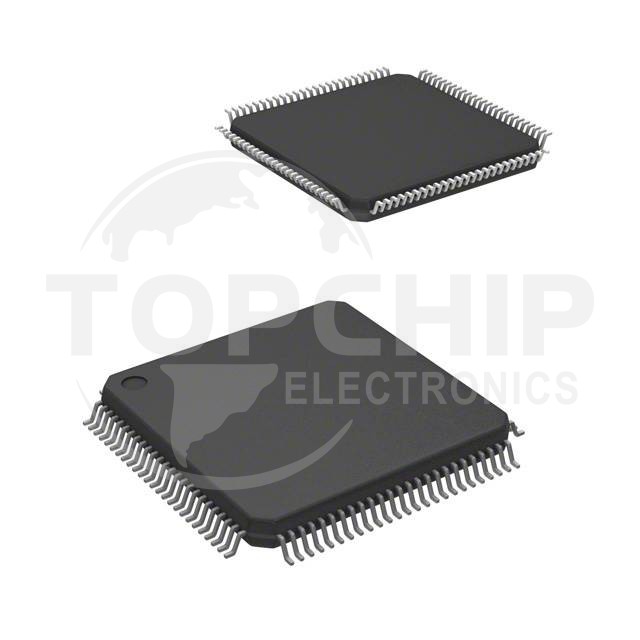

NXP's model MK64FN1M0VLL12R (click to buy now) belongs to the 23-bit MCU microcontroller, which is the Kinetis K64F series, datasheet 120 MHz ARM® Cortex®-M4 based microcontroller with FPU. The MK64FN1M0VLL12R product is optimized for cost-sensitive applications requiring low power consumption, USB/Ethernet connectivity and up to 256 KB of embedded SRAM. The devices share the full functionality and scalability of the Kinetis family. The product offers an operating power consumption as low as 250µA/MHz. Static power consumption is reduced to 5.8µA with full state retention and 5µs wake-up. Lowest static mode as low as 339nA • USB LS/FS OTG 2.0, built-in 3.3 V, 120 mA LDO Vreg, crystalless operation of USB devices • 10/100 Mbit/s Ethernet MAC with MII and RMII interfaces.
Functional features of MK64FN1M0VLL12R
1. High-performance processor: MK64FN1M0VLL12R uses a 32-bit ARM Cortex-M4 core with high running speed up to 120MHz. It supports DSP instruction set and floating point operations, and is suitable for applications requiring high performance.
2. Large-capacity memory: MK64FN1M0VLL12R has 1MB of flash memory and 256KB of SRAM, which can store a large amount of program code and data to meet the needs of a variety of applications.
3. Rich peripheral interfaces: MK64FN1M0VLL12R has rich peripheral interfaces, including USB, I2C, SPI, UART, CAN, etc., which can communicate and exchange data with other peripheral devices.
4. Low power consumption design: MK64FN1M0VLL12R adopts low power consumption design and supports multi-level low power consumption mode, which can minimize power consumption and extend battery life.
5. Security performance: MK64FN1M0VLL12R has a variety of security features, including hardware encryption and decryption, hardware random number generation, independent watchdog, etc., which can ensure the security and reliability of the system.
6. Various packaging forms: MK64FN1M0VLL12R has various packaging forms, including low-power QFN, LQFP, etc., which are convenient for application in different occasions.
Application fields of MK64FN1M0VLL12R
MK64FN1M0VLL12R has a very wide range of application fields. It can not only meet high-performance application requirements, but also can be used in situations with lower power consumption requirements and higher safety requirements. Its main application fields are as follows:
1. Industrial control: MK64FN1M0VLL12R can be used in various industrial control fields, including motor control, PLC, remote monitoring and industrial automation.
2. Automotive electronics: MK64FN1M0VLL12R can be used in the field of automotive electronic systems, including in-vehicle entertainment, body electronic control, and driver information display.
3. Consumer electronics: MK64FN1M0VLL12R can be used in a variety of consumer electronics products, including digital cameras, audio equipment, smart homes, smart watches, etc.
4. Medical equipment: MK64FN1M0VLL12R can be used in a variety of medical equipment fields, including electronic blood pressure monitors, heart rate monitors, electrocardiographs, and medical imaging equipment.
5. Aerospace: MK64FN1M0VLL12R can be used in the aerospace field. This chip can be used in important applications such as aviation control, avionics, satellite communications and navigation systems.
Parameters of MK64FN1M0VLL12R
Brand: NXP
Product Category: 32-bit MCU Microcontroller
Core processor: ARM Cortex-M4
Kernel specification: 32-bit
Speed: 120MHz
Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, SB OTG
Peripherals: DMA, I2S, LVD, POR, PWM, WDT
Number of I/Os: 66
Program storage capacity: 1MB (1M x 8)
Program Memory Type: Flash
RAM size: 256K x 8
Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
Data Converter: A/D 32x16b; D/A 1x12b
Oscillator type: Internal
Working temperature: -40°C ~ 105°C(TA)
Mounting Type: Surface Mount Type
Basic product number: MK64FN1M0
HTSUS: 8542.31.0001
Pin diagram of MK64FN1M0VLL12R
Schematic diagram of MK64FN1M0VLL12R
