NCP1606ADR2G is a critical conduction mode power factor correction controller from ON Semiconductor. ON Semiconductor sells a full range of IC electronic components - TOPCHIP ELECTRONICS provides you with NCP1606ADR2G parameters, functional features, application areas and pin diagrams.
NCP1606ADR2G parameters
Product Family: Power Management IC - PFC (Power Factor Correction)
Packaging: Tape and Reel (TR), Cut Tape (CT)
Part status: Not suitable for new designs
Mode: Critical Conduction (CRM)
Frequency-Switch:-
Current-start: 20μA
Voltage-power supply: 10.3V ~ 20V
Working temperature: -40°C ~ 125°C
Installation type: surface mount type
Product package: 8-SOIC (0.154, 3.90mm wide)
NCP1606ADR2G features
1. Wide operating voltage range, can work between 6V to 40V
2. Programmable frequency range, suitable for different application scenarios
3. With soft start function, it can reduce the power impact during startup
4. Built-in overload and short circuit protection function
NCP1606ADR2G application fields
This chip is suitable for circuit designs that require PWM control. Common application areas include:
electronic ballast
LCD TV
Plasma TV
desktop computer
AC adapter

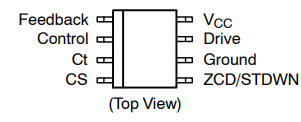

NCP1606ADR2G pin diagram
