PIC16F1933-I/SS is a Microchip MCU. It sells Microchip's full range of IC electronic components as an agent - TOPCHIP ELECTRONICS provides you with PIC16F1933-I/SS pin diagrams and parameter introductions.
Functional features of PIC16F1933-I/SS
Enhanced mid-range core with 49 instructions, 16 stack levels
Flash program memory with self-read/write capabilities
Support 60-segment LCD segment driver
Internal 32MHz oscillator
Integrated capacitive mTouch sensing module
Integrated temperature indicator
MI2C, SPI, EUSART with auto-baud rate
3 ECCP and 2 CCP (enhanced/capture compare PWM)
Comparator with selectable reference voltage
11-channel 10b ADC with voltage reference
25mA source/sink I/O
Four 8-bit timers (TMR0/TMR2/TMR4/TMR6)
1 16-bit timer (TMR1)
Extended Watchdog Timer (EWDT)
Enhanced power-on/power-off reset
Brown-out reset (BOR)
In-Circuit Serial Programming (ICSP)
Wide operating voltage (1.8V – 5.5V)
Low voltage PIC16LF1933 models (1.8V – 3.6V)
PIC16F1933-I/SS parameters
Product Family: Embedded - Microcontrollers
Packaging: pipe fittings
Series: PIC? XLP? 16F
Part status: active
Core processor: PIC
Core specs: 8-bit
Speed: 32MHz
Connectivity: I2C, LINbus, SPI, UART/USART
Peripherals: Undervoltage detection/reset, LCD, POR, PWM, WDT
Number of I/Os: 25
Program storage capacity: 7KB (4K x 14)
Program memory type: Flash
EEPROM capacity: 256 x 8
RAM size: 256 x 8
Voltage-power supply (Vcc/Vdd): 1.8V ~ 5.5V
Data converter: A/D 11x10b
Oscillator type: Internal
Working temperature: -40°C ~ 85°C (TA)
Installation type: surface mount type
Product package: 28-SSOP (0.209, 5.30mm wide)

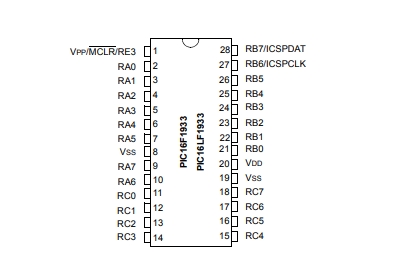

Pin diagram of PIC16F1933-I/SS
