STM32F429VIT6 is a 32-bit general-purpose MCU based on the high-performance Arm® Cortex®-M4 32-bit RISC core from STMicroelectronics and operating at a frequency of up to 180MHz. TOPCHIP ELECTRONICS, which sells STMicroelectronics' full range of IC electronic components as an agent, provides you with STM32F429VIT6 functional features, application areas, parameters and pin diagrams.
Functional features of STM32F429VIT6
1. High performance: STM32F429VIT6 uses the ARM Cortex-M4 core, with a maximum operating frequency of up to 180MHz, high processing performance and low power consumption.
2. Rich peripheral interfaces: STM32F429VIT6 integrates a variety of peripheral interfaces, including multiple universal timers, universal synchronous asynchronous receivers and transmitters, universal serial interfaces, etc., to meet the needs of different application scenarios.
3. Large-capacity memory: STM32F429VIT6 has built-in 2MB flash memory and 256KB SRAM, supports external storage expansion, and has a variety of memory interfaces, which can flexibly respond to various application needs.
4. High-resolution LCD display support: STM32F429VIT6 supports high-resolution LCD display, integrates an LCD controller and DMA2D accelerator, can achieve smooth graphics rendering effects, and supports multiple display interface standards.
5. Rich communication interfaces: STM32F429VIT6 supports a variety of communication interfaces, including USB OTG, Ethernet, CAN, SDIO, SPI, I2C, etc., to meet complex communication needs.
6. Low power consumption design: STM32F429VIT6 integrates a variety of power management mechanisms and supports a variety of low power consumption modes, which can effectively reduce system power consumption and extend battery life.
Application fields of STM32F429VIT6
STM32F429VIT6 is a high-performance ARM Cortex-M4 core microcontroller. Its main application areas are as follows:
1. Industrial automation: The high performance and rich peripheral interfaces of STM32F429VIT6 make it very suitable for industrial automation applications, such as industrial control systems, data acquisition and monitoring systems, etc.
2. Consumer electronics products: Since STM32F429VIT6 has rich peripherals and good performance, it is suitable for consumer electronics products, such as smart home devices, smart wearable devices, and smart speakers.
3. Medical equipment: The high performance and reliability of STM32F429VIT6 make it an ideal choice in the field of medical equipment, such as data collection, monitoring and processing of medical equipment.
4. Industrial robots: Because STM32F429VIT6 has high performance and rich peripheral interfaces, it can be used in applications such as robot control systems and visual recognition systems in the field of industrial robots.
Parameters of STM32F429VIT6
Brand: STMicroelectronics
Product Category: 32-bit MCU
Package: LQFP-100_14x14x05P
Packaging: Pallet
Product application: general MCU
Core processor: ARM Cortex-M4
Kernel specification: 32-bit
Speed: 180MHz
Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USBOTG
Peripherals: Undervoltage detection/reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/Os: 82
Program storage capacity: 2MB (2Mx8)
Program memory type: Flash
EEPROM capacity:-
RAM size: 256Kx8
Voltage-power supply (Vcc/Vdd): 1.8V~3.6V
Data converter: A/D16x12b; D/A2x12b
Oscillator type: Internal
Working temperature: -40°C~85°C(TA)
Installation type: surface mount type
Basic product number: STM32F429
HTSUS: 8542.31.0001

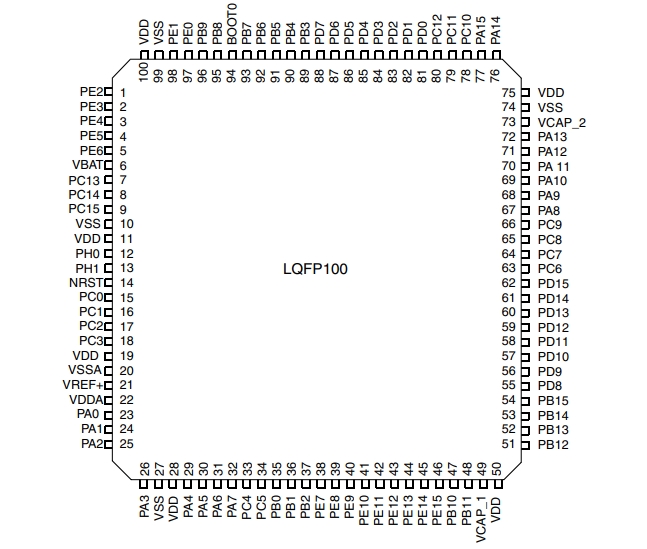

Pin diagram of STM32F429VIT6

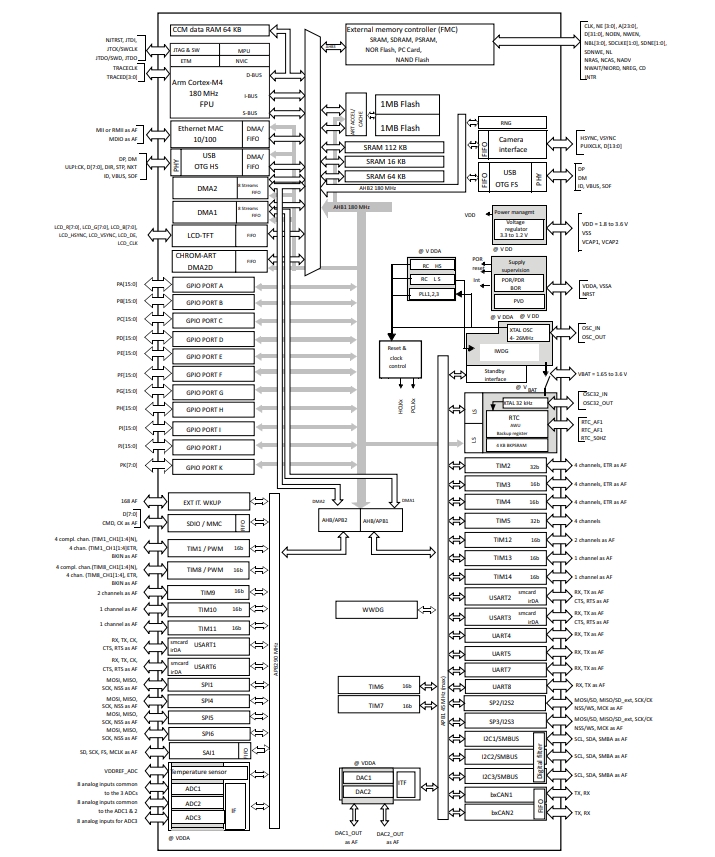

Schematic diagram of STM32F429VIT6
