CRCW0603560RJNEAHP

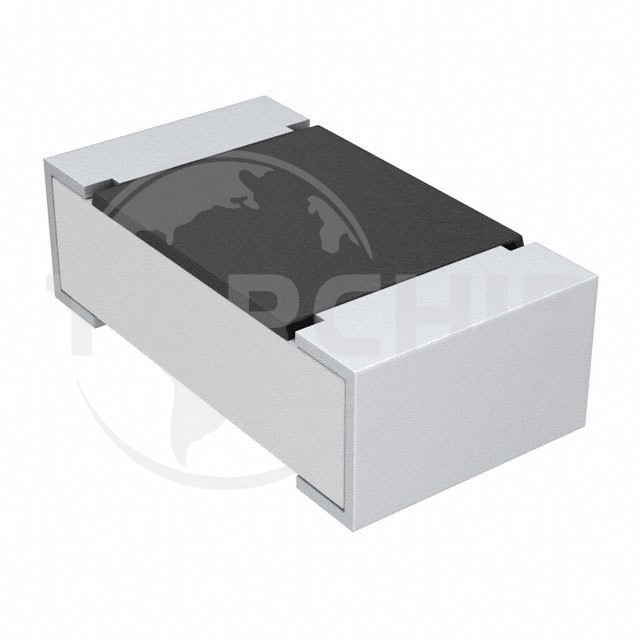

Image is for reference, please contact us to get the real picture

Manufacturer Part
CRCW0603560RJNEAHP
Manufacturer
Vishay / Dale
Description
RES SMD 560 OHM 5% 1/3W 0603
Category
Resistors
Family
Chip Resistors-Surface Mount
Series
-
In Stock
4750
Datasheets
-

CRCW0603560RJNEAHP Specifications

  • Series:CRCW-HP
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Resistance:560 Ohms
  • Tolerance:±5%
  • Power (Watts):0.333W, 1/3W
  • Composition:Thick Film
  • Features:Automotive AEC-Q200, Pulse Withstanding
  • Temperature Coefficient:±200ppm/°C
  • Operating Temperature:-55°C ~ 155°C
  • Package / Case:0603 (1608 Metric)
  • Supplier Device Package:0603
  • Ratings:AEC-Q200
  • Size / Dimension:0.063" L x 0.033" W (1.60mm x 0.85mm)
  • Height - Seated (Max):0.022" (0.55mm)
  • Number of Terminations:2
  • Failure Rate:-
