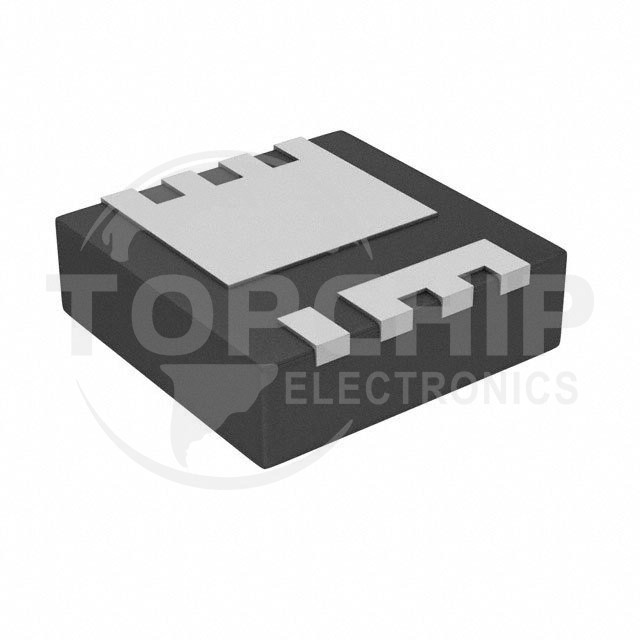

BSZ037N06LS5ATMA1 Specifications

• Series:OptiMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:18A (Ta), 40A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:3.7mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:2.3V @ 36µA
• Gate Charge (Qg) (Max) @ Vgs:47 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:3100 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):2.1W (Ta), 69W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PG-TSDSON-8-FL
• Package / Case:8-PowerTDFN
