IXFP5N100PM Specifications

• Series:HiPerFET™, PolarP2™
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):1000 V
• Current - Continuous Drain (Id) @ 25°C:2.3A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:2.8Ohm @ 2.5A, 10V
• Vgs(th) (Max) @ Id:6V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:33.4 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:1830 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):42W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole

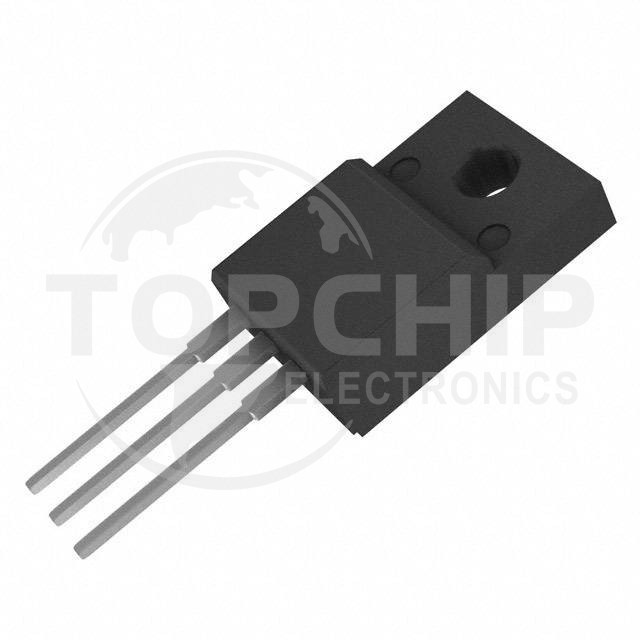

• Supplier Device Package:TO-220 Isolated Tab
• Package / Case:TO-220-3 Full Pack, Isolated Tab
