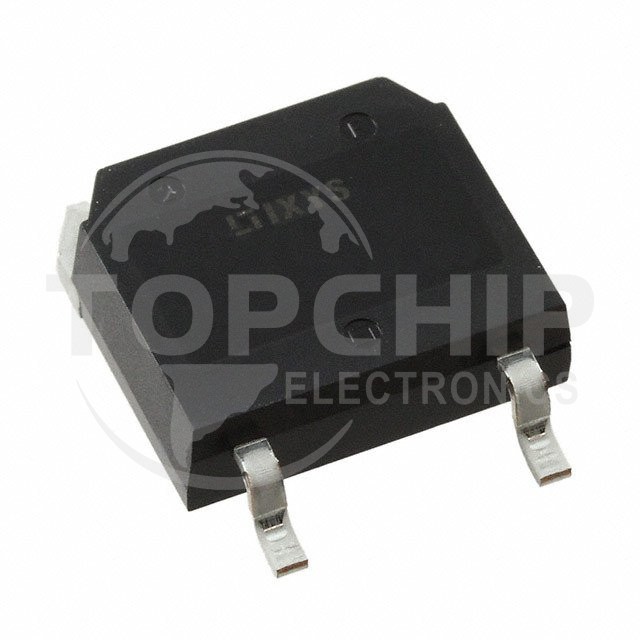

IXFT150N17T2 Specifications

• Series:HiPerFET™, TrenchT2™
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):175 V
• Current - Continuous Drain (Id) @ 25°C:150A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:12mOhm @ 75A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:233 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:14600 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):880W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TO-268HV
• Package / Case:TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
