ZXMN6A09KTC Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Discontinued at Digi-Key
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:7.7A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:40mOhm @ 7.3A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:29 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1426 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):2.15W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

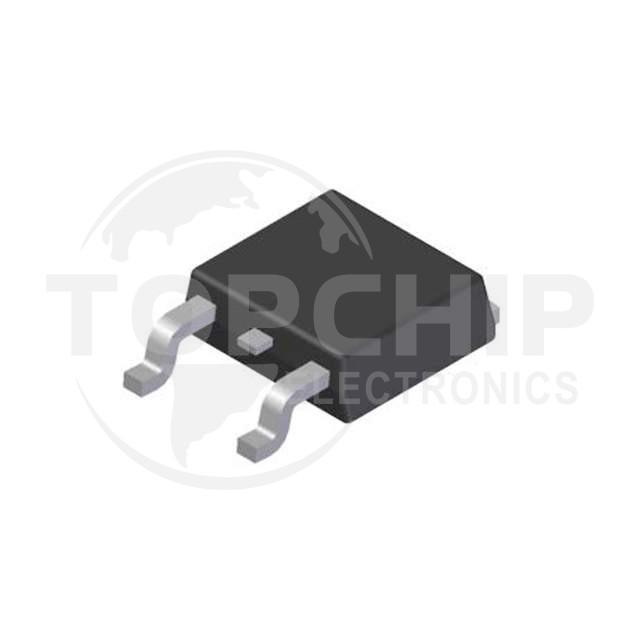

• Supplier Device Package:TO-252-3
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
