JTN1AG-PA-F-DC5V

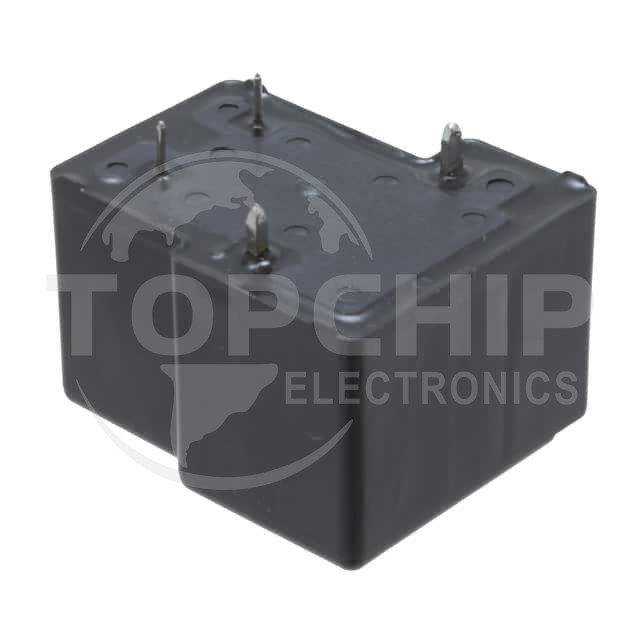

Image is for reference, please contact us to get the real picture

Manufacturer Part
JTN1AG-PA-F-DC5V
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 30A 5V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
0
Datasheets
-

JTN1AG-PA-F-DC5V Specifications

  • Series:JT-N
  • Package:Bulk
  • Part Status:Not For New Designs
  • Mounting Type:Through Hole
  • Coil Voltage:5VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):30 A
  • Switching Voltage:277VAC - Max
  • Coil Current:160 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:-
  • Coil Insulation:Class F
  • Must Operate Voltage:3.75 VDC
  • Must Release Voltage:0.5 VDC
  • Operate Time:20 ms
  • Release Time:10 ms
  • Operating Temperature:-55°C ~ 85°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
