PHD98N03LT,118 Specifications

• Series:TrenchMOS™
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):25 V
• Current - Continuous Drain (Id) @ 25°C:75A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):5V, 10V
• Rds On (Max) @ Id, Vgs:5.9mOhm @ 25A, 10V
• Vgs(th) (Max) @ Id:2V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:40 nC @ 5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:3000 pF @ 20 V
• FET Feature:-
• Power Dissipation (Max):111W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:DPAK

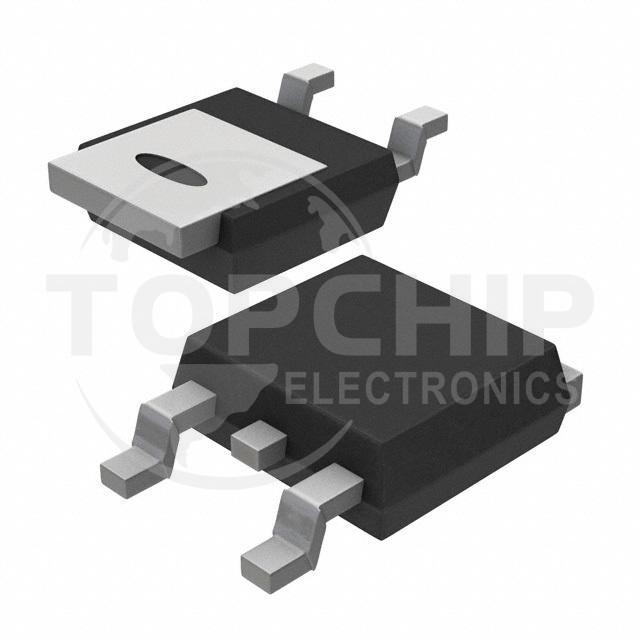

• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
