STMicroelectronics' model STM32G030K6T6 (click to buy now) is an MCU microcontroller, based on the high-performance Arm® Cortex®-M0+32-bit RISC core and operating frequency up to 64MHz. They provide a high level of integration for a wide range of applications in the consumer, industrial and home appliance sectors and are ready for Internet of Things (IoT) solutions.
The STM32G030K6T6 includes a Memory Protection Unit (MPU), high-speed embedded memory (8KB SRAM and up to 64 KB Flash with read protection, write protection), DMA, extensive system functions, enhanced I/O and peripherals. These devices offer standard communication interfaces (two I2C, two SPI/one I2S and two USART), a 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power RTC, an advanced control PWM timer, Four general-purpose 16-bit timers, two watchdog timers and a SysTick timer.
The STM32G030K6T6 operates in an ambient temperature range of -40 to 85°C with a supply voltage of 2.0 V to 3.6 V. Optimized dynamic power consumption combined with a comprehensive set of power-saving modes enables the design of low-power applications.
Functional features of STM32G030K6T6
1. High performance: STM32G030K6T6 uses the Arm Cortex-M0+ core, with an operating frequency of up to 64 MHz and strong performance, suitable for applications in fields that require high performance.
2. Rich peripherals: This microcontroller integrates a rich set of peripherals, including a variety of communication interfaces (such as SPI, I2C, UART, etc.), ADC (analog-to-digital converter), timers, PWM, etc., to meet different needs application requirements.
3. Low-power design: STM32G030K6T6 adopts an advanced low-power design and supports a variety of low-power modes, such as standby mode, sleep mode, etc., which can extend battery life and is suitable for battery-powered application scenarios.
4. Complete development ecosystem: STMicroelectronics provides a wealth of development tools and software support, including STM32CubeMX configuration tools, HAL libraries, RTOS support, etc., to facilitate developers to quickly develop applications.
5. Security: STM32G030K6T6 supports hardware encryption and secure boot functions, which can effectively protect device and data security and is suitable for application scenarios that require security.
Application fields of STM32G030K6T6
STM32G030K6T6 is a microcontroller chip suitable for a variety of application fields. Its main application fields are as follows:
1. Industrial control: The STM32G030K6T6 chip has the characteristics of high performance and low power consumption, and is suitable for industrial control fields. Can be used to control various industrial equipment and robots.
2. Smart home: This chip can also be used in the smart home field to implement home automation control systems, such as smart lighting control, smart door locks, etc.
3. Consumer electronics: The STM32G030K6T6 chip is also widely used in the field of consumer electronics, such as smart watches, smart wearable devices, smart home appliances, etc.
4. Medical equipment: The chip can also be used in the field of medical equipment, such as blood pressure monitors, blood glucose meters, thermometers and other electronic medical equipment.
Parameters of STM32G030K6T6
Brand: STMicroelectronics
Product Category: 32-bit MCU
Installation type: surface mount
Package/casing: LQFP32_7X7MM
Working temperature: -40℃~+85℃
Interface: I²C, IrDA, LINbus, SPI, UART/USAR
Part status: Active
CPU core: ARM Cortex-M0+
Core size: 32-bit
Main frequency speed (Max): 64MHz
Number of I/Os: 29
Program space capacity: 32KB
Program space type: flash memory
Working voltage (range): 1.8V~3.6V
Connectivity: I²C, SPI, UART/USART
Memory RAM capacity: 8KB
Length x Width/Dimensions: 7.00 x 7.00mm
Height: 1.60mm
Component life cycle: Active
ADC resolution: 12
Number of pins: 32Pin

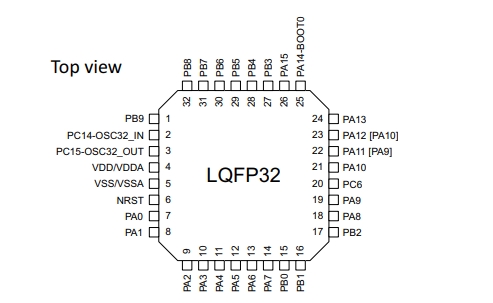

Pin diagram of STM32G030K6T6

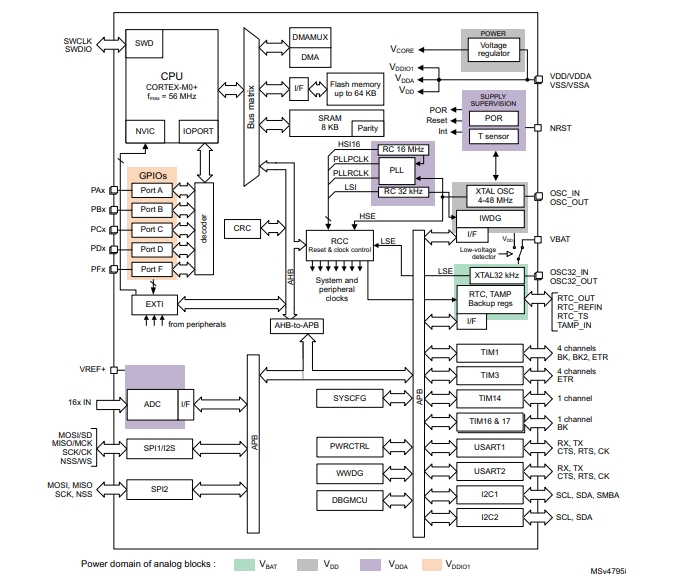

Functional block diagram of STM32G030K6T6
