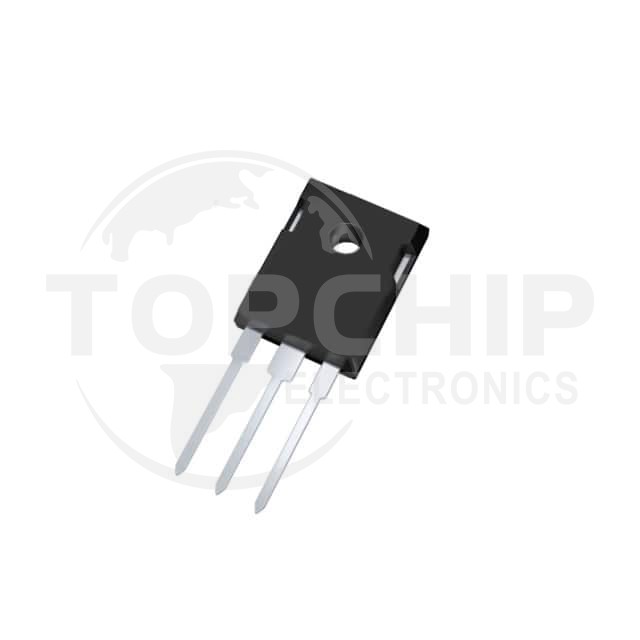

IPAN60R125PFD7SXKSA1 Specifications

• Series:CoolMOS™PFD7
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):650 V
• Current - Continuous Drain (Id) @ 25°C:25A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:125mOhm @ 7.8A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 390µA
• Gate Charge (Qg) (Max) @ Vgs:36 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1503 pF @ 400 V
• FET Feature:-
• Power Dissipation (Max):32W (Tc)
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:PG-TO220 Full Pack
• Package / Case:TO-220-3 Full Pack
